1.5mm – 6mm Resin SWA Cable Joint Kit

£15.15 Ex. VAT £18.18 Inc. VAT
  • Compatible with Cable Sizes 1.5mm² to 6mm²
  • 2 Core, 3 Core & 4 Core
  • All Required Materials Included
  • Easy, Hassle-free Installation

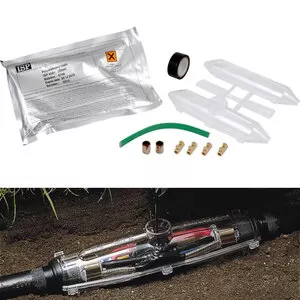

1.5mm – 6mm SWA Cable Joint Kit – Resin joint kit suitable for use with a range of sizes of SWA Cable. These kits include a two part resin sachet (the resin and hardener are separated by a clip), and a clip-on cover with a centralised filling hole. Also included is an earth continuity kit.

This kit is compatible with the following cable sizes:

2 Core SWA Cable:

3 Core SWA Cable:

4 Core SWA Cable:

1.5mm – 6mm Resin SWA Cable Joint Kit Features & Specifications

  • High Electrical insulation values
  • Watertight both longitudinally and transveresely
  • High Mechanical Strength
  • Good Resistance against UV Radiation, alkaline earths and chemical agents
  • Standard resin storable up to 40 months in the aluminium bag
  • Halogen free polyurethanic cast resin, containing the correct volume ready for mixing within a handy two-chamber mixing bag. No need for skin contact
  • Low hardening temperature, fast hardening with no toxic emission during the mixing and casting.
  • High quality, transparent, shockproof polycarbonate moulds, compact size
  • Visible splice position before casting
  • Large insertion opening for easy casting
  • Extremely simple and fast fitting – saves time and costs
  • Immediately operational

Additional information

Weight 0.5000 kg

General Information
1.5mm – 6mm SWA Cable Joint Kit are supplied with everything needed to join two or even three cables together. All 1.5mm – 6mm SWA Cable Joint Kit contain a clear PVC joint shell which snaps together with a clip on cover for the central filling hole. The polyurethane two part resin is supplied in a sealed sachet with a clip seperating the resin and hardener. The standard 1.5mm – 6mm SWA Cable Joint Kit are supplied complete with an earth continuity kit.
This cable joint will suit any of the following cables:-
– 1.5mm 2 Core, 1.5mm 3 Core, 1.5mm 4 Core- 2.5mm 2 Core, 2.5mm 3 Core, 2.5mm 4 Core- 4mm 2 Core, 4mm 3 Core, 4mm 4 Core- 6mm 2 Core, 6mm 3 Core, 6mm 4 Core
