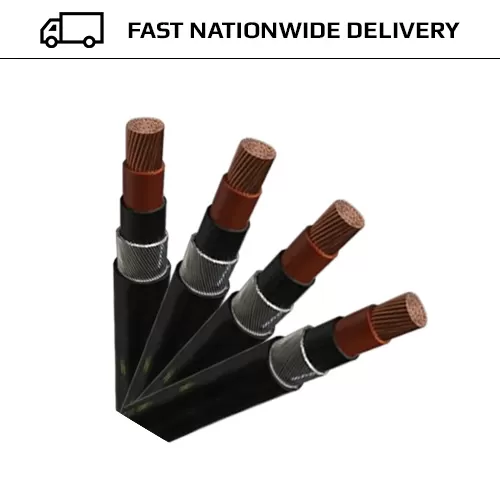

AWA 6491X 120mm single core armoured cable

AWA 6491X 120mm single core armoured cable

Per Metre

This product is sold by the length. Simply select the number of metres you'd like to purchase.
POA - CLICK HERE TO ENQUIRE FOR PRICE
SKU: 120mm single core armoured

AWA 6491X 120mm single core armoured cable

We sell a large range of AWA single core armoured cable, so if you cannot find the single core armoured cable you require, please contact our Sales Team on 01244 288138 for further information and assistance. SWAcable.net are based on the Deeside Industrial Estate near Chester, so if you’d prefer to pick up your 6491AX armoured cable as opposed to having it delivered, please feel free to do so. Single core armoured cable at the best prices online, cut to length with fast, free delivery on orders over £100.00.

Armoured XLPE mains cable to British Standard BS5467 suitable for power networks

AWA 6491X 120mm single core armoured cable specification as follows ;

Additional information

Weight 1.4100 kg
Application

Primarily found within powered networks and providing mains electricity to powered devices.

Approx overall diameter (approximate size)

23.1mm

Approx weight per meter

1.41 Kg

Armour / Protection

Aluminium wire armoured

Bedding

PVC (Polyvinyl-Chloride)

BS Number

BS5467

Colour

Black

Conductors

Stranded Plain Annealed Compacted Circular Copper Conductors

Description

AWA 6491X 120mm single core armoured cable
We sell a large range of AWA single core armoured cable, so if you cannot find the single core armoured cable you require, please contact our Sales Team on 01244 288138 for further information and assistance. SWAcable.net are based on the Deeside Industrial Estate near Chester, so if you'd prefer to pick up your 6491AX armoured cable as opposed to having it delivered, please feel free to do so. Single core armoured cable at the best prices online, cut to length with fast, free delivery on orders over £100.00.Armoured XLPE mains cable to British Standard BS5467 suitable for power networks
AWA 6491X 120mm single core armoured cable specification as follows ;

Insulation

Cross-Linked Polyethylene (XLPE)

Operating temperature

-15 degrees to +90 degrees

Product Code

120mm single core armoured

Number of cores / size of cable

120mm x 1

Sort Code

2

Standard

BASEC Approved; BS5467 Thermosetting Insulated

Voltage

600 / 1000V
