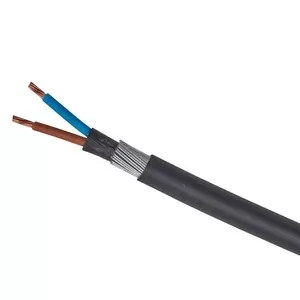

1.5mm 2 Core SWA Cable Per Metre

£1.38 Ex. VAT £1.66 Inc. VAT
  • 27A Current Rating (Clipped Direct)
  • Steel Wire Armour Protection
  • Suitable For Direct Burial
  • Overall Diameter: 12.3mm
Bulk Savings Available
Qty Price
0 - 71 £1.38 Ex. VAT £1.66 Inc. VAT
72 - 95 £1.48 Ex. VAT£1.78 Inc. VAT
96 - 142 £1.35 Ex. VAT£1.62 Inc. VAT
143 - 250 £1.33 Ex. VAT£1.60 Inc. VAT
251+ £1.27 Ex. VAT£1.52 Inc. VAT

Per Metre

This product is sold by the length. Simply select the number of metres you'd like to purchase.
SKU: 1.5MM-2-CORE-SWA

1.5mm x 2 Core SWA Cable Per Metre is generally used for lower power garden lighting, outdoor switches & sockets, small outdoor pond pumps etc. This cable contains a steel wire armour below the outer sheath, meaning it is protected against damage when buried underground. The armour can also be used a secondary Earth (CPC).
This cable also adheres to all the relevant British standards, making it perfectly safe.

Specifications

  • Overall Diameter: 12.3mm
  • Current Rating: 27A (Clipped Direct)
  • Conductors: Stranded Copper
  • Insulation: XLPE
  • Core identification: 2 core (Brown & Blue)
  • Bedding: PVC
  • Armour/Protection: SWA
  • Sheath/Jacket: PVC
  • Colour: Black
  • Operating temperature: 0°C – 90°C
  • Standard: BS5467
  • Voltage: 600/1000V

Further Information

Our in-house electrician Colin recommends using this cable for small lighting circuits in a garden. This cable would be perfect for supplying mains power to a set of garden spike lights surrounding a water feature, for example. For this job we recommend wiring the cable directly into the mains and then burying the cable underground. The cable will require outdoor CW20S glands for termination, as well as CC5 cable clips for attaching to any walls or surfaces.

For more information on how to install armoured cable easily and safely, check out this ‘How To’ video on installing Steel Wire Armoured Cable.

Additional information

Weight 0.2500 kg
Number of Cores

2 Core

Current Rating

27A

Cable Size (mm²)

1.5mm²
