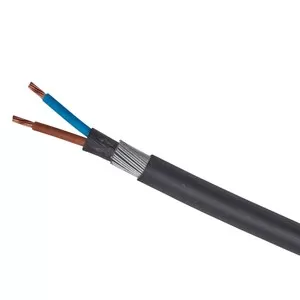

70mm 2 Core SWA Cable Per Metre is a large mains power supply cable with 1 blue neutral core and 1 brown live core (separate earth would be required). This cable is designed to negate voltage drop when taking power over long distances. For example, this is the cable you’d use for powering a large unit or outbuilding on a farm. The steel wire armour below the outer sheath helps to protect the cable from damage and chemicals. You can also use this cable as a secondary earth or CPC.
70mm 2 Core SWA Cable Per Metre Specifications
- Overall Diameter: 29mm
- Current Rating: 279A (Clipped Direct)
- Conductors: Stranded Copper
- Insulation: XLPE
- Core identification: 2 core (Brown & Blue)
- Bedding: PVC
- Armour/Protection: SWA
- Sheath/Jacket: PVC
- Colour: Black
- Operating Temperature: 0°C – 90°C
- Standard: BS 5467
- Voltage: 600/1000V
Further Information
Our in-house electrician Alex recommends using this cable for supplying mains power to an outbuilding. For correct and safe installation, we recommend wiring the cable directly to the mains and then protecting the cable by burying the cable underground.
This 2 Core SWA cable will require outdoor CW32 glands for termination. For surface or wall mounting, we recommend you use CC12 cable clips.
For professional advice on how to install armoured cable easily and safely, check out this ‘How To’ video on installing Steel Wire Armoured Cable. This is for reference during the cable installation.
