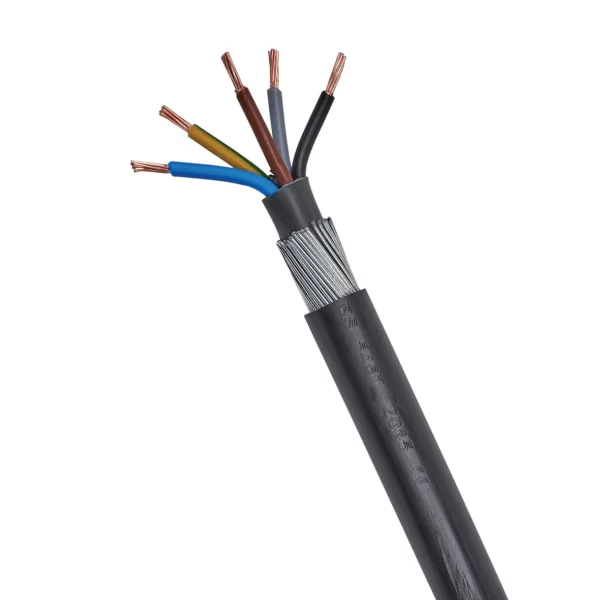

25mm x 5 Core SWA Cable Per Metre

£18.95 Ex. VAT £22.74 Inc. VAT
  • Current Rating: 124 Amps
  • Galvanised Steel Wire Armour
  • PVC Outer Sheathing
  • Overall Diameter: 31.5mm

Per Metre

This product is sold by the length. Simply select the number of metres you'd like to purchase.
SKU: 25MM-5-CORE-SWA

25mm x 5 Core SWA Cable Per Metre – Three phase mains supply cable with a high current rating making it perfect for industrial applications. This cable features a galvanised steel wire armour below the outer sheath, meaning you can install this cable underground as well as outdoors. The steel wire armour protects the cores and bedding below from impact and electrical interference.

  • Large Three Phase Installations & Devices
  • Powering Three Phase Devices Long Distances from the supply
  • High current Three Phase and earth circuits
  • High power Three phase motors

Specifications for 25mm x 5 Core SWA Cable Per Metre

  • Overall Diameter: 31.5mm
  • Current rating : 96 Amp (Clipped Direct)
  • Three Phase Neutral & Earth
  • Conductors: Stranded copper
  • Insulation: XLPE
  • Core identification: Brown, Blue, Black, Grey, Green/Yellow
  • Bedding: PVC
  • Armour/Protection: SWA (Steel Wire Armour)
  • Sheath/Jacket: PVC
  • Colour: Black
  • Voltage: 600/1000v
  • Operating temperature: Maximum 90°C, minimum bending 0°C
  • Standard: BS5467: Electric cables.
  • Designed for use in mains supply electricity

Further Information

Our in-house electrician John recommends using this cable for outdoor garden lighting installations. As the cable is armoured, it is also protected from damage whilst being buried for added peace of mind.
Remember to use CC11 Cable Cleats to attach the cable to any building or structure and outdoor CW32 glands to terminate the stripped ends into the required equipment. This also provides a clean and tidy installation as well as protecting the cable from any knocks or scrapes. Remember that indoor BW32 brass cable glands are also available for this cable size.

For more information on how to install armoured cable easily and safely, check out this ‘How To’ video on installing Steel Wire Armoured Cable. This is for reference during the cable installation.

Additional information

Weight 2.3200 kg
Application

Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.

Approx overall diameter (approximate size)

31.5mm

Approx weight per meter

2.32 Kg

Armour / Protection

SWA (Single wire armour)

Bedding

PVC (Polyvinyl-Chloride)

BS Number

BS5467

Colour

Black

Conductors

Plain annealed stranded copper

Core identification

5 core (Brown, Black, Grey, Blue and green / yellow)

Current Rating

124A

Description

SWA Cable 5 Core 25mm
We sell a large range of SWA Cable 5 Core 25mm, so if cannot find the SWA Cable 5 Core 25mm you require, please contact our Sales Team on 01244 288138 for further information and assistance. SWAcable.net are based on the Deeside Industrial Estate near Chester, so if you'd prefer to pick up your SWA Cable 5 Core 25mm as opposed to having it delivered, please feel free to do so. SWA Cable 5 Core 25mm at the best prices online, cut to length with fast, free delivery on orders over £100.00.SWA Cable 5 Core 25mm or Armoured XLPE mains cable to British Standard BS5467 suitable for power networks

SWA cable 5 core 25mm specification as follows ;

Insulation

XLPE (Cross linked polyethylene)

Operating temperature

Maximum 90C, minimum bending 0C

Product Code

6945X SWA Cable 5 core 25mm

Sheath / Jacket

PVC (Polyvinyl-Chloride)

Number of cores / size of cable

SWA Cable 5 core 25mm

Sort Code

7

Standard

BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V

Voltage

600 / 1000V
