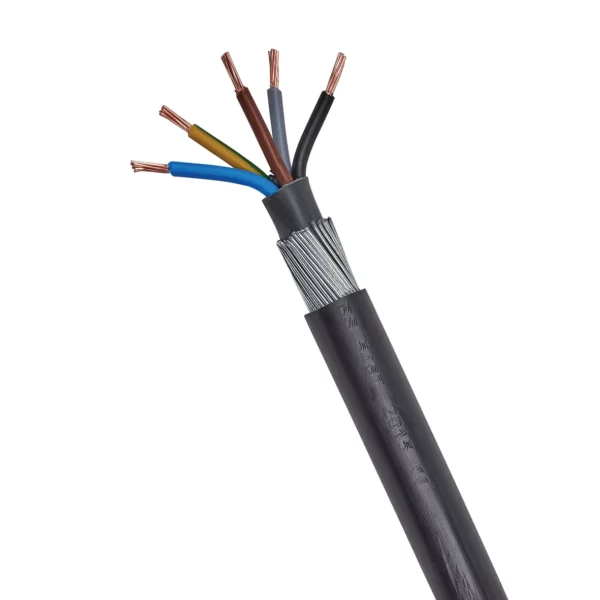

35mm x 5 Core SWA Cable Per Metre

£22.88 Ex. VAT £27.46 Inc. VAT
  • Current Rating: 154 Amps
  • Galvanised Steel Wire Armour
  • PVC Outer Sheathing
  • Overall Diameter: 34.8mm

Per Metre

This product is sold by the length. Simply select the number of metres you'd like to purchase.

35mm x 5 Core SWA Cable Per Metre – Three phase electrical cable suitable for a wide variety of industrial applications. As this cable is armoured, you can use it for underground installations as well as attaching it to structures or buildings using CC14 Cable Cleats. This cable is also suitable for use within factories, for example, attached to cable trays within the ceiling. Please note that you’ll need CW40 glands for outdoor use and BW40 glands for indoor use.

Uses for this armoured cable include the following;

  • Industrial Welding Equipment
  • Control Installations
  • Out Buildings
  • Garden Rooms

If you need to asses what size cable it is you require, please follow this link for our SWA Cable Calculator.

PLEASE NOTE; this is an approximation, if you don’t know what cable size it is you require, please contact a qualified electrician so they can confirm.

Specifications for 35mm x 5 Core SWA Cable Per Metre

  • Overall Diameter: 34.8mm
  • Current rating: 154 Amps
  • Conductors: Stranded Copper
  • Insulation: XLPE
  • Core identification: Brown, Black & Grey
  • Bedding: PVC
  • Armour/Protection: SWA (Steel wire armour)
  • Sheath/Jacket: PVC
  • Colour: Black
  • Voltage: 600/1000v
  • Operating temperature: Maximum 90°C, minimum bending 0°C
  • British Standard: BS5467
  • Designed for use in mains supply electricity

Further Information

Fast, free delivery to mainland UK addresses (excluding highlands & islands) is available for as little as £5.99 plus VAT, however delivery is free on orders over £100 excluding VAT. If you require delivery notifications via text or email, please remember to include your mobile number and email address in the order.

Additional information

Weight 2.9000 kg

Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.

Armour / Protection

SWA (Single wire armour)


PVC (Polyvinyl-Chloride)

BS Number





Plain annealed stranded copper

Core identification

5 core (Brown, Black, Grey, Blue and green / yellow)

Current Rating



SWA Cable 5 Core 35mm
We sell a large range of SWA Cable 5 Core 35mm, so if cannot find the SWA Cable 5 Core 35mm you require, please contact our Sales Team on 01244 288138 for further information and assistance. SWAcable.net are based on the Deeside Industrial Estate near Chester, so if you'd prefer to pick up your SWA Cable 5 Core 35mm as opposed to having it delivered, please feel free to do so. SWA Cable 5 Core 35mm at the best prices online, cut to length with fast, free delivery on orders over £100.00.SWA Cable 5 Core 35mm or Armoured XLPE mains cable to British Standard BS5467 suitable for power networks
SWA cable 5 core 35mm specification as follows ;


XLPE (Cross linked polyethylene)

Operating temperature

Maximum 90C, minimum bending 0C

Product Code

6945X SWA Cable 5 core 35mm

Sheath / Jacket

PVC (Polyvinyl-Chloride)

Number of cores / size of cable

SWA Cable 5 core 35mm

Sort Code



BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V


600 / 1000V
