BW32 Indoor SWA Cable Gland Pack

BW32 Indoor SWA Cable Gland Pack

£8.75 Ex. VAT £10.50 Inc. VAT

Compatible with the following cable sizes:

SKU: BW32-INDOOR-SWA-GLAND

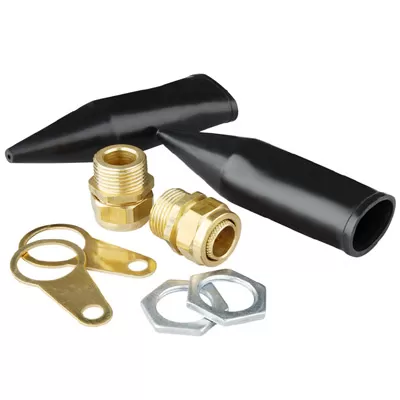

BW32 Indoor SWA Cable Gland Pack – Indoor cable gland pack that includes 2 x brass glands, 2 x lock nuts, 2 x earth tags (banjos) and 2 x cable shrouds. These high quality gland packs are used for terminating the SWA cable into junction boxes, containers, adaptable boxes plus many more!

Standards: Generally to BS6121: Part 1: 2005: Mechanical cable glands. Armour glands. Requirements and test methods.

BW32 Indoor SWA Cable Gland Pack Features/Specifications:

  • Part Code: PACG32/2
  • Size: 32mm
  • Application: Dry indoor, for use with cable sizes listed above
  • Standard of Compliance: BS 6121-1:2005
  • IP Rating: IP2X
  • Dimensions:
    BW20S Gland Line Diagram(A): 26.3mm
    (B): 32.5mm
    (C): 32mm

Further Information

If you require all technical information regarding these gland packs, please see the BW Indoor Cable Gland Data Sheet. This will help you to make an informed purchase when picking your cable gland sizes.

Additional information

Weight 1.0000 kg
Description

SWA cable gland indoor BW32 pack
SWAcable.net stock a large range of SWA cable gland indoor BW32 pack which we deliver all over the United Kingdom five days a week. Which also means that SWA cable gland indoor BW32 pack are also available for pick up from our Deeside branch which is open six days a week. All the SWA cable gland indoor BW32 pack meet BS6121 standards.
Additional SWA cable gland indoor BW32 pack information ;
2 Part Internal Glands for SWA CableTerminates and secures cable amouring.
Application: Brass gland for use with all types of SWA cable. Used on indoor applications not requiring the weatherproof feature of an inner or outer sealStandards: Generally to BS6121: Part 1: 2005: Mechanical cable glands. Armour glands. Requirements and test methods.
Accessories: As standard, all glands come complete with earth tags, lock nuts and shrouds where required.
Cable sizes to suit your SWA cable gland indoor BW32 pack ;

SWA cable 25mm 4 core
SWA cable 35mm 2 core
SWA cable 35mm 3 core
SWA cable 50mm 2 core
SWA cable 50mm 3 core
SWA cable 70mm 2 core
SWA cable 70mm 3 core
SWA cable 95mm 2 core
