CW25 Outdoor SWA Cable Gland Pack

£9.85 Ex. VAT £11.82 Inc. VAT
SKU: CW25-OUTDOOR-SWA-GLAND

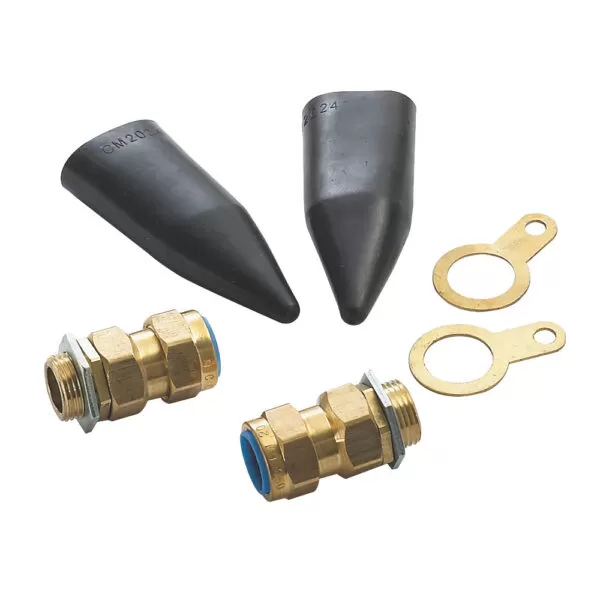

CW25 Indoor SWA Cable Gland Pack – Indoor cable gland pack that includes 2 x brass glands, 2 x lock nuts, 2 x earth tags (banjos) and 2 x cable shrouds. These high quality gland packs are used for terminating the SWA cable into junction boxes, containers, adaptable boxes plus many more! These glands are primarily for outdoor use as they are waterproof. If you don’t require outdoor glands, please see our ‘BW25 Indoor SWA Cable Gland Pack‘ for the indoor variation.

CW25 Indoor SWA Cable Gland Pack Features/Specifications:

  • Part Code: PACG25CW
  • Size: 25mm
  • Application: Outdoor applications to provide a waterproof seal for use with all types of SWA Cable
  • Standard of Compliance: EN 62444
  • IP Rating: IP66

Dimensions:

Outdoor Cable Gland Diagram

  • Entry Threads (D) Metric: M25
  • Entry Threads (D) (Thread Length “C”): 10mm
  • Overall Cable Diameter (A) Min. : 19.9mm
  • Overall Cable Diameter (A) Max : 27.2mm
  • Across Flats (B) Max: 34.5mm
  • Across Corners (B) Max: 38.3mm

Further Information

If you require all technical information regarding these gland packs, please see the CW Outdoor Cable Gland Data SheetThis will help you to make an informed purchase when picking your cable gland sizes.

Additional information

Weight 0.5000 kg
Description

SWA cable gland outdoor CW25 pack
SWAcable.net stock a large range of SWA cable gland outdoor CW25 pack which we deliver all over the United Kingdom five days a week. Which also means that SWA cable gland outdoor CW25 pack are also available for pick up from our Deeside branch which is open six days a week. All the SWA cable gland outdoor CW25 pack meet BS6121 standards.
Additional SWA cable gland outdoor CW25 pack information ;
2 Part External Glands for SWA CableTerminates and secures cable amouring.
Application: Brass gland for use with all types of SWA cable. Used on indoor applications not requiring the weatherproof feature of an inner or outer sealStandards: Generally to BS6121: Part 1: 2005: Mechanical cable glands. Armour glands. Requirements and test methods.
Accessories: As standard, all glands come complete with earth tags, lock nuts and shrouds where required.
Cable sizes to suit your SWA cable gland outdoor CW25 pack ;

SWA cable 10mm 3 core
SWA cable 10mm 4 core
SWA cable 16mm 2 core
SWA cable 16mm 3 core
SWA cable 16mm 4 core
SWA cable 25mm 2 core
SWA cable 25mm 3 core
