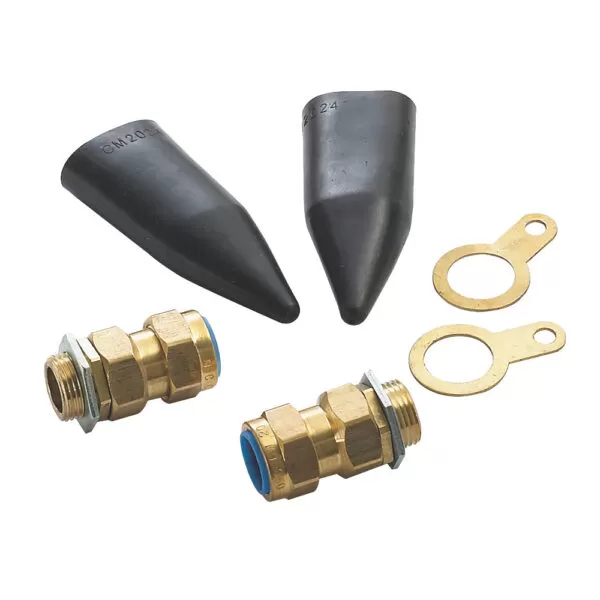

CW32 Indoor SWA Cable Gland Pack – Indoor cable gland pack that includes 2 x brass glands, 2 x lock nuts, 2 x earth tags (banjos) and 2 x cable shrouds. These high quality gland packs are used for terminating the SWA cable into junction boxes, containers, adaptable boxes plus many more! These glands are primarily for outdoor use as they are waterproof. If you don’t require outdoor glands, please see our ‘BW32 Indoor SWA Cable Gland Pack‘ for the indoor variation.
CW32 Indoor SWA Cable Gland Pack Features/Specifications:
- Part Code: PACG32CW
- Size: 32mm
- Application: Outdoor applications to provide a waterproof seal for use with all types of SWA Cable
- Standard of Compliance: EN 62444
- IP Rating: IP66
Dimensions:
- Entry Threads (D) Metric: M32
- Entry Threads (D) (Thread Length “C”): 10mm
- Overall Cable Diameter (A) Min. : 26.2mm
- Overall Cable Diameter (A) Max : 33.5mm
- Across Flats (B) Max: 41.5mm
- Across Corners (B) Max: 46.5mm
Further Information
If you require all technical information regarding these gland packs, please see the CW Outdoor Cable Gland Data Sheet. This will help you to make an informed purchase when picking your cable gland sizes.
