SWA Cat 5E Cable per metre

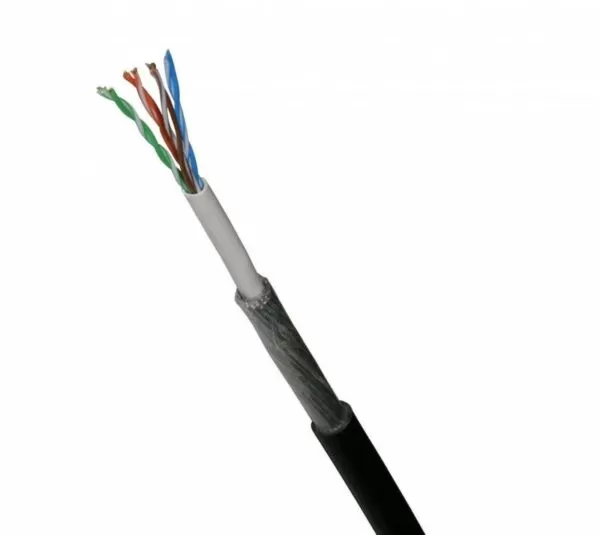

This SWA cat 5e cableis cut to length so if you just simply put in the quanity how metres you need. CAT 5E swa cable is also known as outdoor ethernet cable, direct burial internet cable, external data or network cable and whole host of other names. The Armoured cat5 cable is LSZH (Low Smoke Zero Halogen) and 24AWG (American Wire Gauge). The outer diameter is just shy of 1cm, measuring a total of 9mm OD. Like all Armoured cat5 cables we stock, the make up of the Steel is Galvanized. This is a premium build of cable and the best prices on-line for GSWA (not the cheaper corrugated steel tape). Our warehouse usually holds around 2000 mtrs of Armoured cat5 at any time.Armoured cat5 cable is made up of an everyday Cat5e Ethernet Cable on the inside. Exactly like the data cable we would use for our home computer or Internet router. The main difference being, is this cat5 cable has a Galvanized Armoured Steel Wire plating protecting the 4 pairs of Ethernet cable. The cable is then layered with a Polyethylene Sheath (PE) which gives the outer jacket a protection against UV and moisture.
Technical specification
- Solid Copper (not cheap/none compliant CCA)
- High quality
- Diameter – 9mm
- 24 AWG
- Polyolefin Insulated
- LSZH
- G/SWA Galvanized Steel Wire Armoured
- Minimum Installation bend radius – 12 x diameter
- Minimum Installed bend radius – 8 x diameter
- Operating Temperature Range -20 to 60C
- Standards: EIA/TIA 568A;
- ISO/IEC 11801 2nd ed.; IEC 61156-5
- EN 50173; EN 50288-3-1
- Fire Performance – IEC 60332-3-22 (Cat. A); IEC 60754-2; IEC 61034
We sell a large range of SWA network cable, so if you cannot find the Outdoor networl cable you require, please contact our Sales Team on 01244 288138 for further information and assistance. SWAcable.net are based on the Deeside Industrial Estate near Chester, so if you’d prefer to pick up your SWA network cable as opposed to having it delivered, please feel free to do so.
