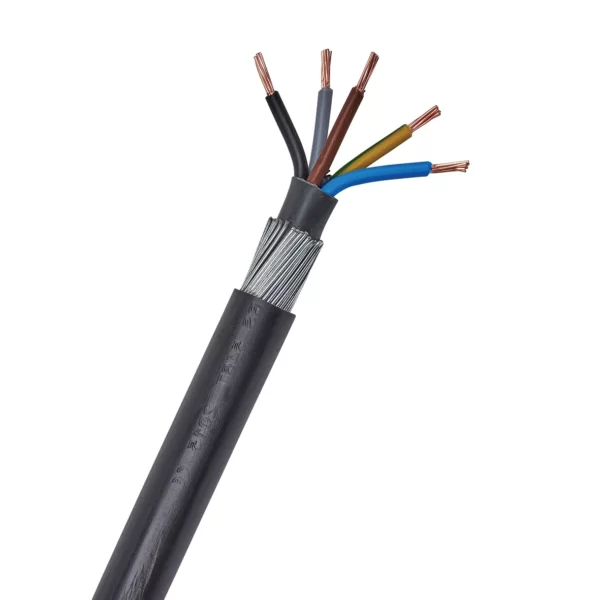

10mm x 5 Core SWA Cable Per Metre

£7.48 Ex. VAT £8.98 Inc. VAT
  • Current rating : 58 Amp (Clipped Direct)
  • Galvanised Steel Wire Armour
  • PVC Outer Sheath
  • Direct Burial & Outdoor Use
Bulk Savings Available
Qty Price
0 - 50 £7.48 Ex. VAT £8.98 Inc. VAT
51 - 100 £7.19 Ex. VAT£8.63 Inc. VAT
101 - 250 £7.02 Ex. VAT£8.42 Inc. VAT
251 - 500 £6.90 Ex. VAT£8.28 Inc. VAT
501+ £6.79 Ex. VAT£8.15 Inc. VAT

Per Metre

This product is sold by the length. Simply select the number of metres you'd like to purchase.
SKU: 10MM-5-CORE-SWA

10mm x 5 Core SWA Cable Per Metre – Mains power supply cable with a galvanised steel wire armour below the outer sheath. This means you can install this cable underground as the armour protects it from any impact. The outer sheath is also hard-wearing and UV-resistant, meaning it can be used outside without the risk of sun damage over long periods.

  • Auxiliary Power Networks
  • Two-way switching circuits
  • High current Three Phase and earth circuits
  • High power Three phase motors

Specifications for 10mm x 5 Core SWA Cable Per Metre

  • Current rating : 58 Amp (Clipped Direct)
  • Three Phase Neutral & Earth
  • Conductors: Stranded copper
  • Insulation: XLPE
  • Core identification: Brown, Blue, Black, Grey, Green/Yellow
  • Bedding: PVC
  • Armour/Protection: SWA (Steel Wire Armour)
  • Sheath/Jacket: PVC
  • Colour: Black
  • Voltage: 600/1000v
  • Operating temperature: Maximum 90°C, minimum bending 0°C
  • Standard: BS5467: Electric cables.
  • Designed for use in mains supply electricity

Further Information

Our in-house electrician Eddy recommends using this cable for outdoor garden lighting installations. As the cable is armoured, it is also protected from damage whilst being buried for added peace of mind.
Remember to use CC10 Cable Cleats to attach the cable to any building or structure and outdoor CW25 glands to terminate the stripped ends into the required equipment. This also provides a clean and tidy installation as well as protecting the cable from any knocks or scrapes. Remember that indoor BW25 brass cable glands are also available for this cable size.

For more information on how to install armoured cable easily and safely, check out this ‘How To’ video on installing Steel Wire Armoured Cable. This is for reference during the cable installation.

Additional information

Weight 1.1300 kg
Application

Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.

Approx overall diameter (approximate size)

22.9mm

Approx weight per meter

1.13 Kg

Armour / Protection

SWA (Single wire armour)

Bedding

PVC (Polyvinyl-Chloride)

BS Number

BS5467

Colour

Black

Conductors

Plain annealed stranded copper

Core identification

5 core (Brown, Black, Grey, Blue and green / yellow)

Current Rating

73A

Description

SWA Cable 5 Core 10mm
We sell a large range of SWA Cable 5 Core 10mm, so if cannot find the SWA Cable 5 Core 10mm you require, please contact our Sales Team on 01244 288138 for further information and assistance. SWAcable.net are based on the Deeside Industrial Estate near Chester, so if you'd prefer to pick up your SWA Cable 5 Core 10mm as opposed to having it delivered, please feel free to do so. SWA Cable 5 Core 10mm at the best prices online, cut to length with fast, free delivery on orders over £100.00.SWA Cable 5 Core 10mm or Armoured XLPE mains cable to British Standard BS5467 suitable for power networks

SWA cable 5 core 10mm specification as follows ;

Insulation

XLPE (Cross linked polyethylene)

Operating temperature

Maximum 90C, minimum bending 0C

Product Code

6945X SWA Cable 5 core 10mm

Sheath / Jacket

PVC (Polyvinyl-Chloride)

Number of cores / size of cable

SWA Cable 5 core 10mm

Sort Code

5

Standard

BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V

Voltage

600 / 1000V
